Overview

TLDguard uniquely recognises each TLD and securely locks in the cabinet. It releases assigned TLD to authorized person, guarding against misuse of TLDs.

Control access to TLDs
Automatic user identification
TLD usage logging and reporting
Quick ROI by relieving Health Physicists
Reduction in mysterious radiation dose
Aids flawless recording of absorbed dose
Easy onboarding & user-friendly
Life Time Support

Explore Now

How it Works

Authenticate

Face/FP/RFID/PIN

Released

Assigned TLD released

Transaction Logged

Pickup TLD; System automatically logs transaction

Return

After usage, return to any slot in cabinet. TLD recognised, Transaction logged

Key Features

Each TLD monitored

Every TLD activity Logged

Generates Usage report

Relieves Health Physicist

Features Detail

Security & Tamper Resistance

Every TLD is uniquely identified, locked, and tracked.
Layered Authentication: Maximize security with multi-factor and dual-authentication (Biometrics, RFID, or PIN).
Physical Integrity: Withstands extreme force (up to 1000N). Features instant tamper detection and alarming.
Visual Audit: Optional integrated camera captures a snapshot of every action
Communication: Communication between all entities are secured

Total Monitoring & Real-Time Intelligence

Complete Visibility: Real-time tracking of everyTLD issue and return.
Intelligent Reporting: Instantly generate comprehensive reports (usage, available, drawn).
Historical Data: Secured, long-term history of all events and access snapshots for robust auditing.
Proactive Alerts: Continuously monitors and reports alarm conditions.

Customise:

Designed to Grow with You: Customization and Scalability

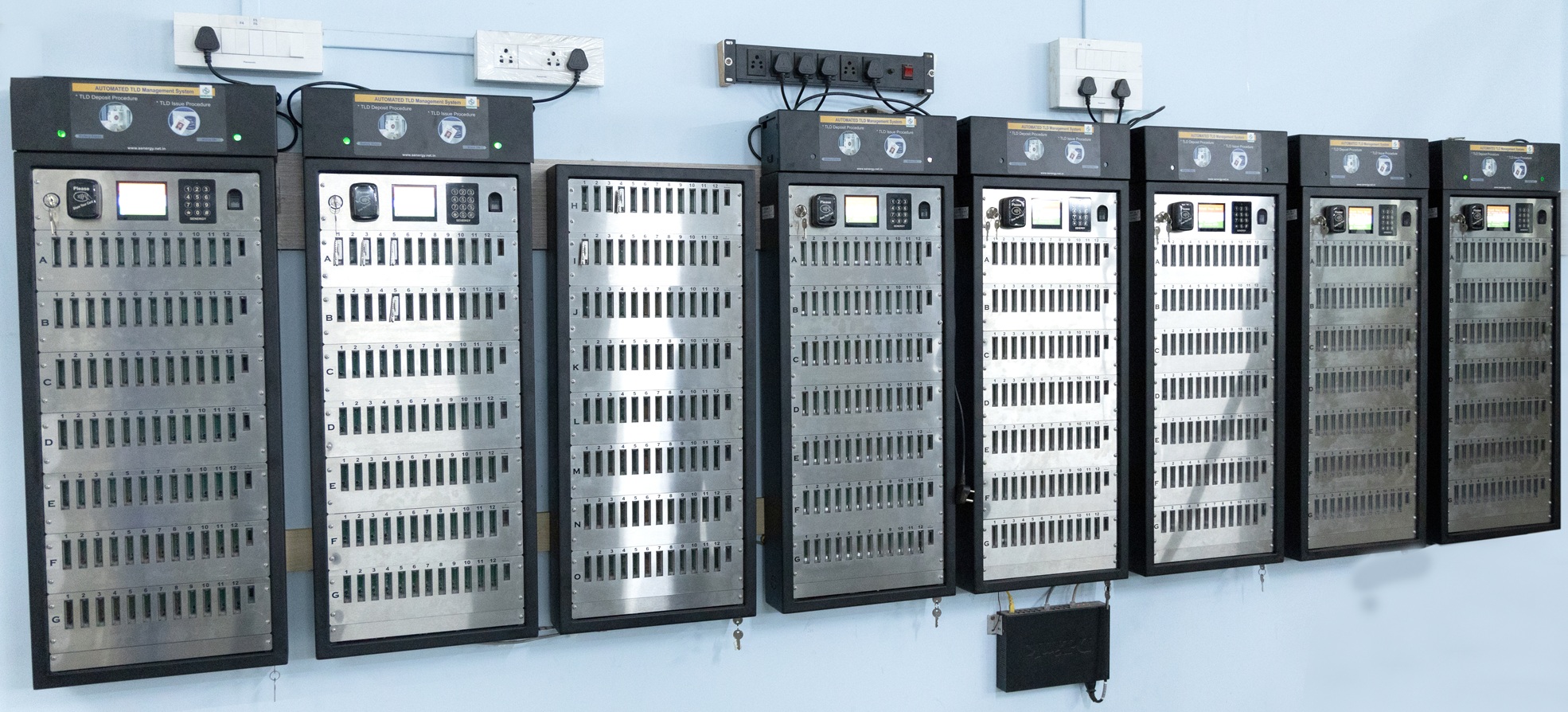

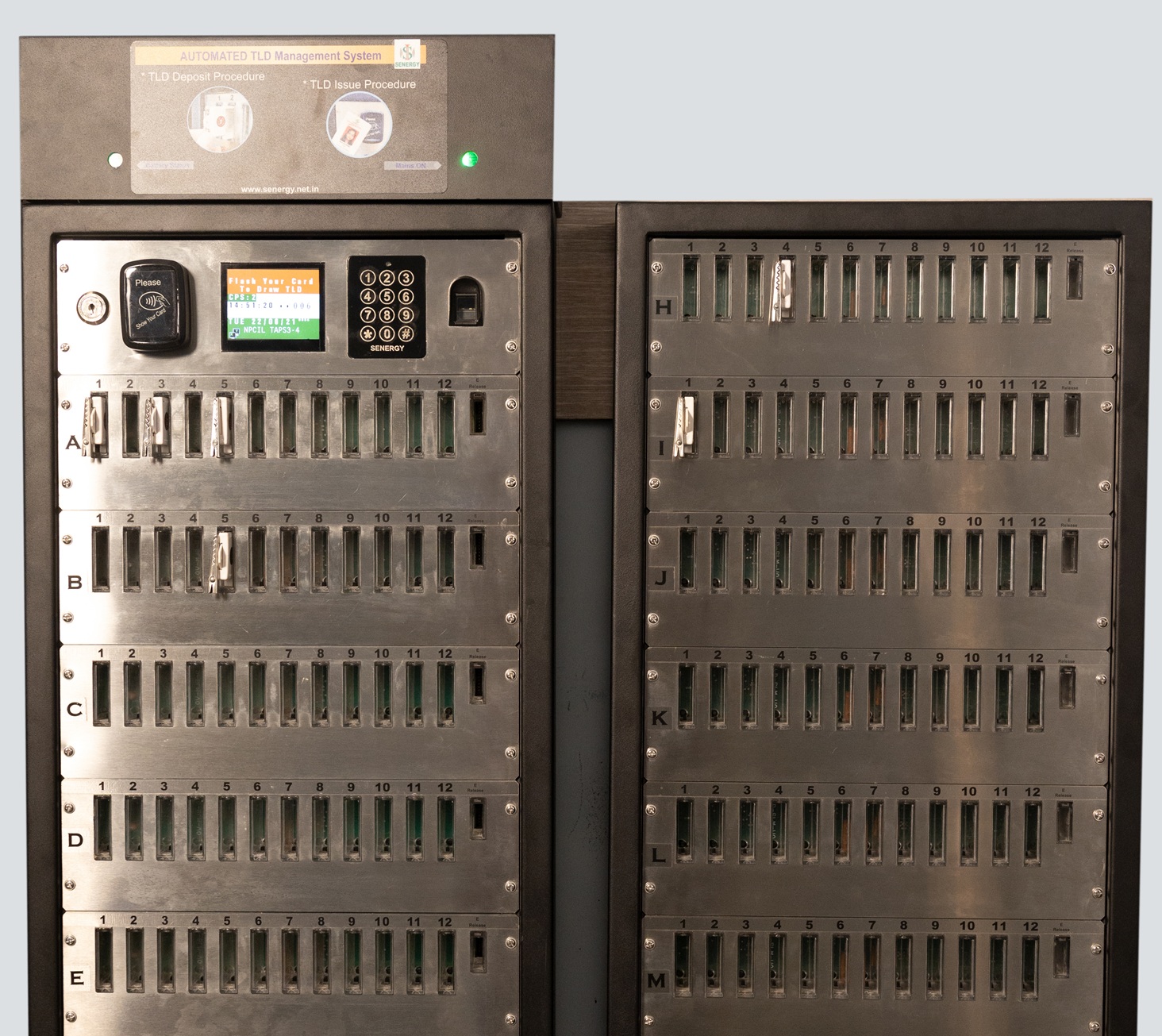

Modular Capacity: Scales from 12 to 180 TLDs per cabinet
Expandable Design: Field-expandable and modular
Add more cabinets and connect with one software
Customised for Wrist-TLD, DRD, neutron badge
Cabinet and TLD tag colour options
Mechanical Emergency Release for any unexpected situations

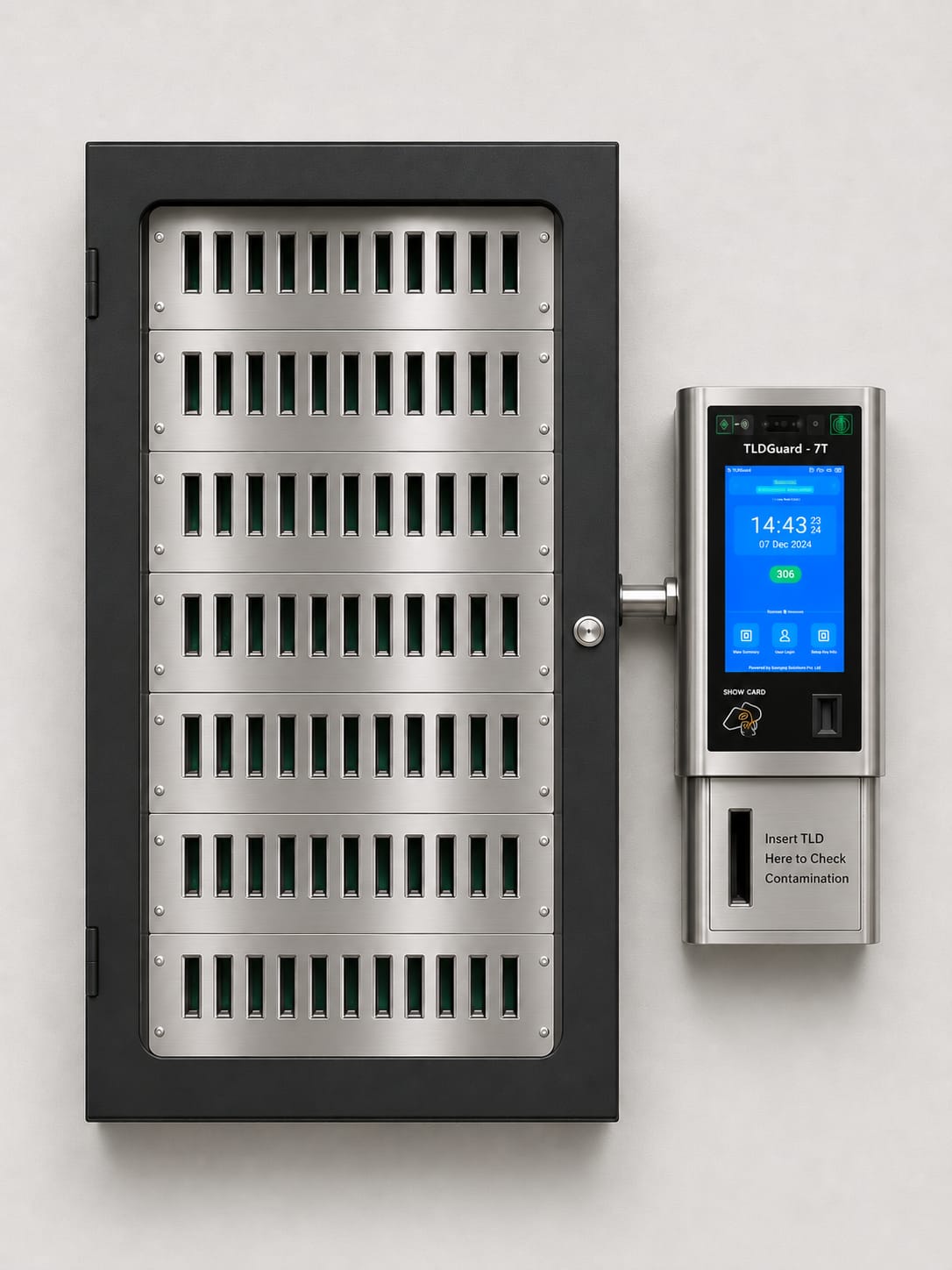

TLD-Contamination check Module

Enforces contamination check of TLD before return to cabinet
Add-on module with any TLD system
Contamination check module opens slot for return for un-contaminated TLD
Raises alert to admin for contaminated TLD- return of such TLD prevented

TLD-Locker

Special for users having multiple dose monitoring devices
Small lockers that open on authentication
Inside assigned locker, Individual slots for each device

TLD-ACS : TLD based Access Control System

Enforce carrying TLD to enter restricted area in plant
TLD system is integrated with ACS (Access control system)
User is identified with TLD to grant access
All ACS reports based on TLD.
Headcount to show exactly how many persons in plant, or in safe area - in case of emergency

Nuclear Power Plants
Nuclear Fuel manufacturing Plants
Nuclear Reasearch Reactors
Nuclear Labs
Oncology Department in Hospitals
Radiology Department in Hospitals

Technical Specification

Speed	Dispense your TLD in under 3sec. Authenticate your RFID Card in under 0.2sec.
TLD tag	Unique RFID tag attached to each TLD . TLD Functionality is not altered in any manner.
Power supply	230V AC ±10%, 50 Hz Battery backup support
Capacity	Stores and manages multiple TLDs securely with configurable capacity options 12-180
Authentication	RFID Card / Tag PIN-based access Biometric (Fingerprint / Face / IRIS)
Data Storage	Stores up to 2 years transaction logs
Build & Material	MS powder-coated cabinet Stainless steel front panel Industrial-grade durability
Mounting	Wall cabinet for secure installation.

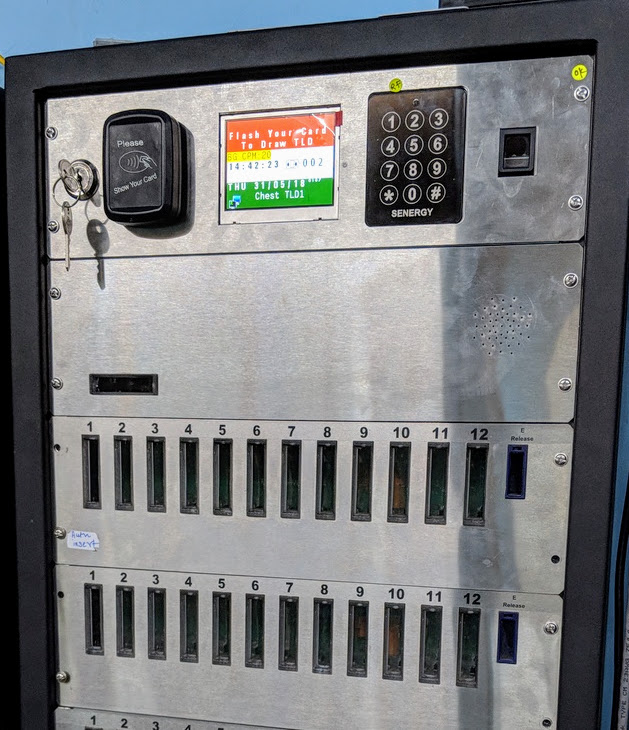

Display	3.5" with rugged keypad or Touchscreen interface for easy navigation and control- 7”, 10”
Alerts & Notifications	Tamper alerts Unauthorized access alerts
External Interface	Programmable inputs, outputs

Secure TLDs

Provide access only to authorized users to avoid mysterious dosage
