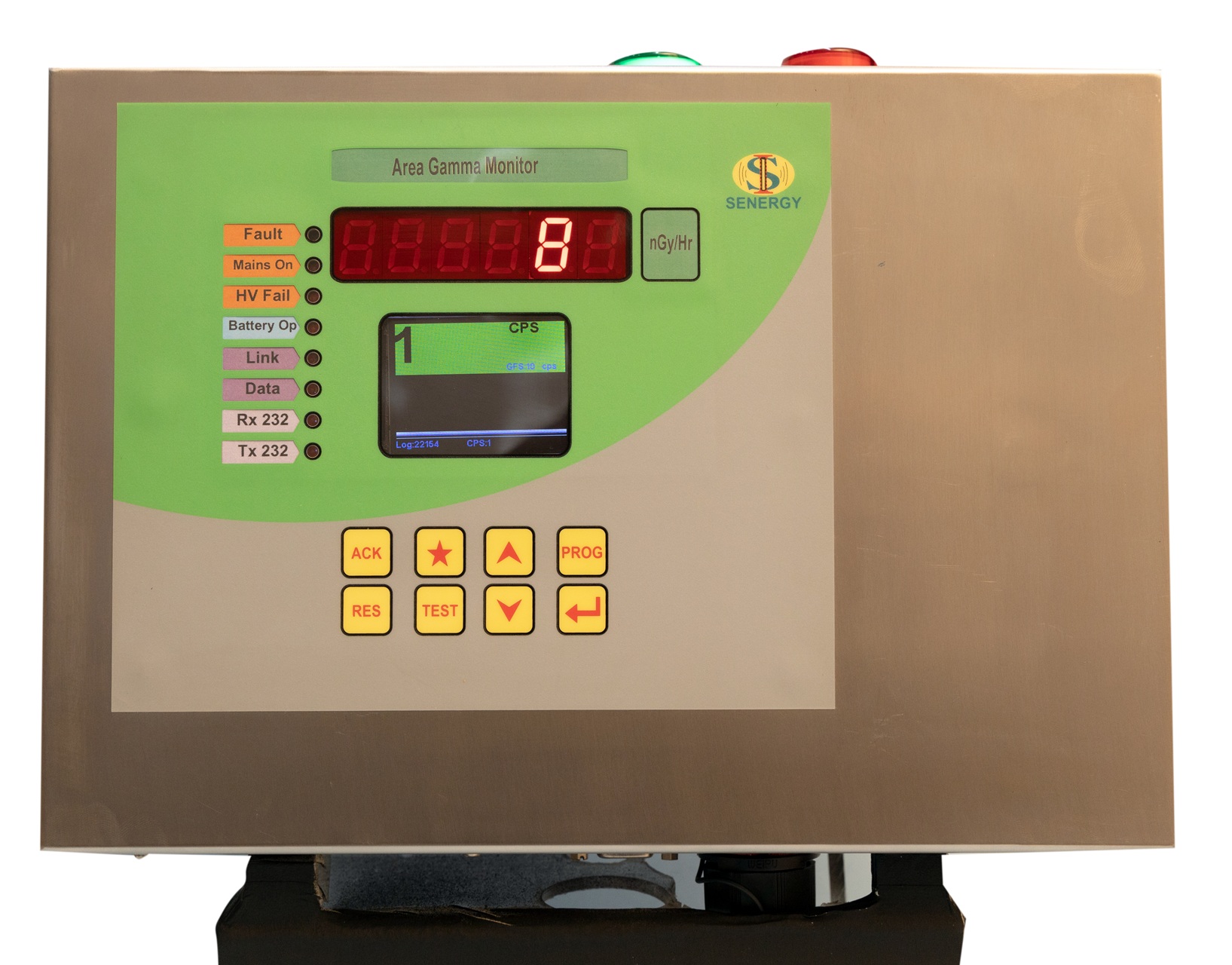

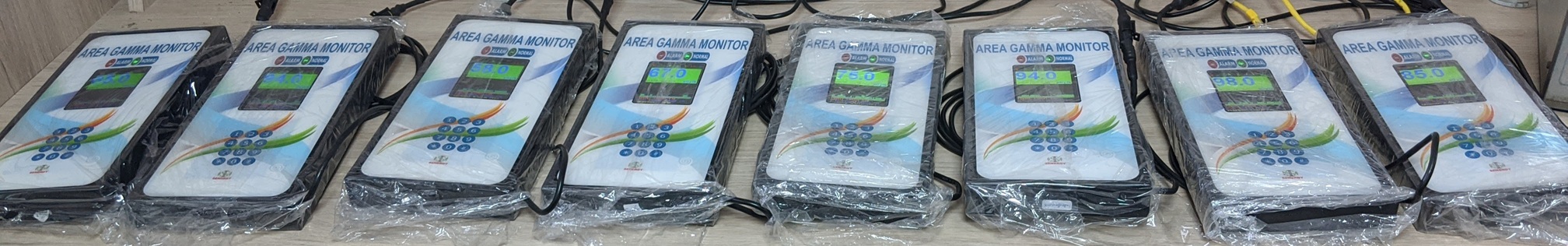

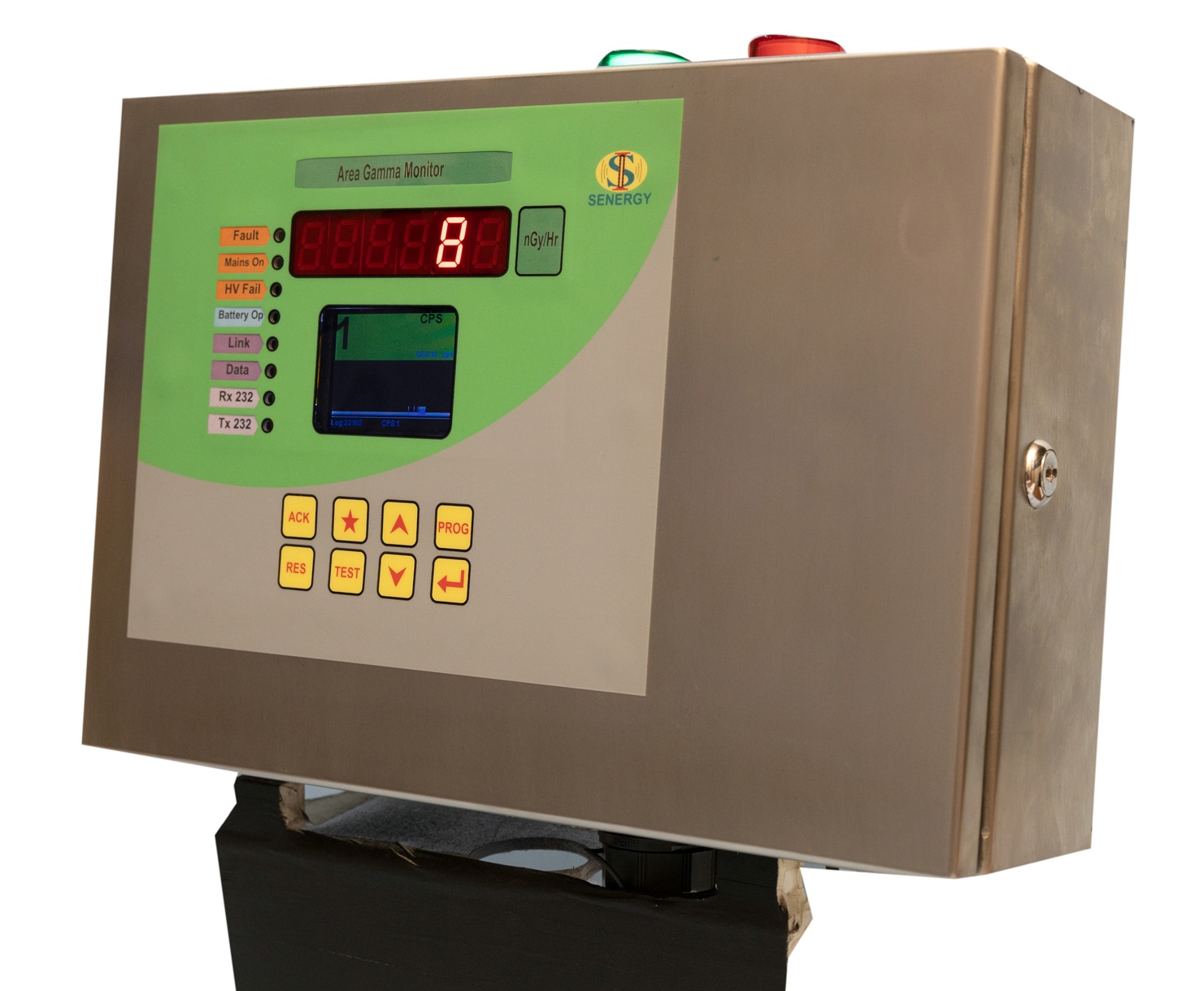

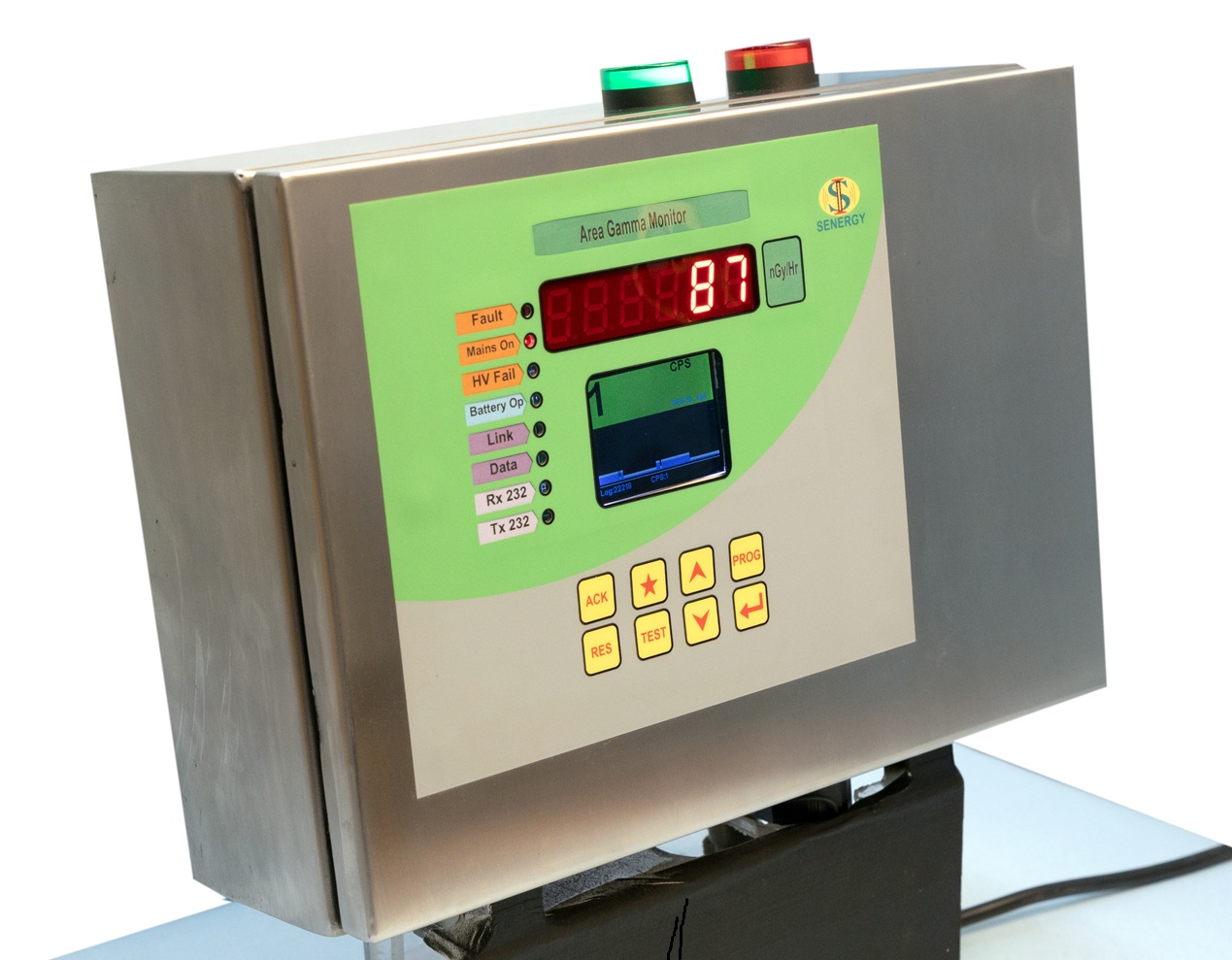

Area Gamma Monitor

compact and robust device for measuring gamma radiation, designed specifically for area and process monitoring in nuclear facilities.

Overview

  • Continuous monitoring of Gamma dose rate
  • Local Graphical Trend for last few minutes
  • High contrast Display in nGy/Hr or mSv/hr or uR/Hr
  • Alarm detection and Indication with Acknowledge facility
  • Ready for SCADA Integration

Enquire Now

How it Works

Monitor
Monitor

Monitors Gamma radiation

1
Display
Display

Display radiation in selected unit

2
Alarm
Alarm

Generates Alarm on detection of high radiation levels

3
Communicate
Communicate

Communicate all data to central server

4

Features

  • Measuring gamma radiation, designed specifically for area and process monitoring in nuclear facilities.
  • Monitors gamma radiation using internal sensitive Geiger Muller tube
  • Displays gamma dose rate of the area and helps in creating alerts to warn local people in the event of an alarm (emergency) situation.
  • The radiation level is indicated in user defined engineering units.
  • Provides audio and visual alarm indication when threshold levels are exceeded.

  • Acknowledge or reset of the alarms locally or remotely possible
  • Large Status Indicators: Green for normal / Red for alarm condition.
  • Self diagnosis indicates internal faults avoiding wrong indications.
  • LEDs for status indications like fault, battery low, HV status
  • Graphical view of variation of radiation
  • Contact outputs for alarm.
  • Radiation level available as analog output in the form of 4-20mA/0-5V DC.
  • The device has large storage for logs with timestamp.
  • Central software collects data from multiple devices, provides centralized indication.
  • Acknowledge alarms at device or at central server.
  • Configure signal, setpoint at the device or from central server.
  • All communication is encrypted.
  • Seamless Communication
  • Can connect to host to have central monitoring.
  • Host interfaces available are - Ethernet LAN, RS485, RS232, Zigbee wireless, GPRS.

  • Display - 2.2”, 3.5”, 5”, 5.7” TFT or 7-segment.
  • Keypad - 8 key or touch.
  • Choose as per need:.
  • 0-10mR/Hr or 0-0.1 mGy/Hr.
  • Or 0-10R/Hr with multiple GM tubes.
  • Internal or external GM tube
  • Rugged AGM for vehicle mount

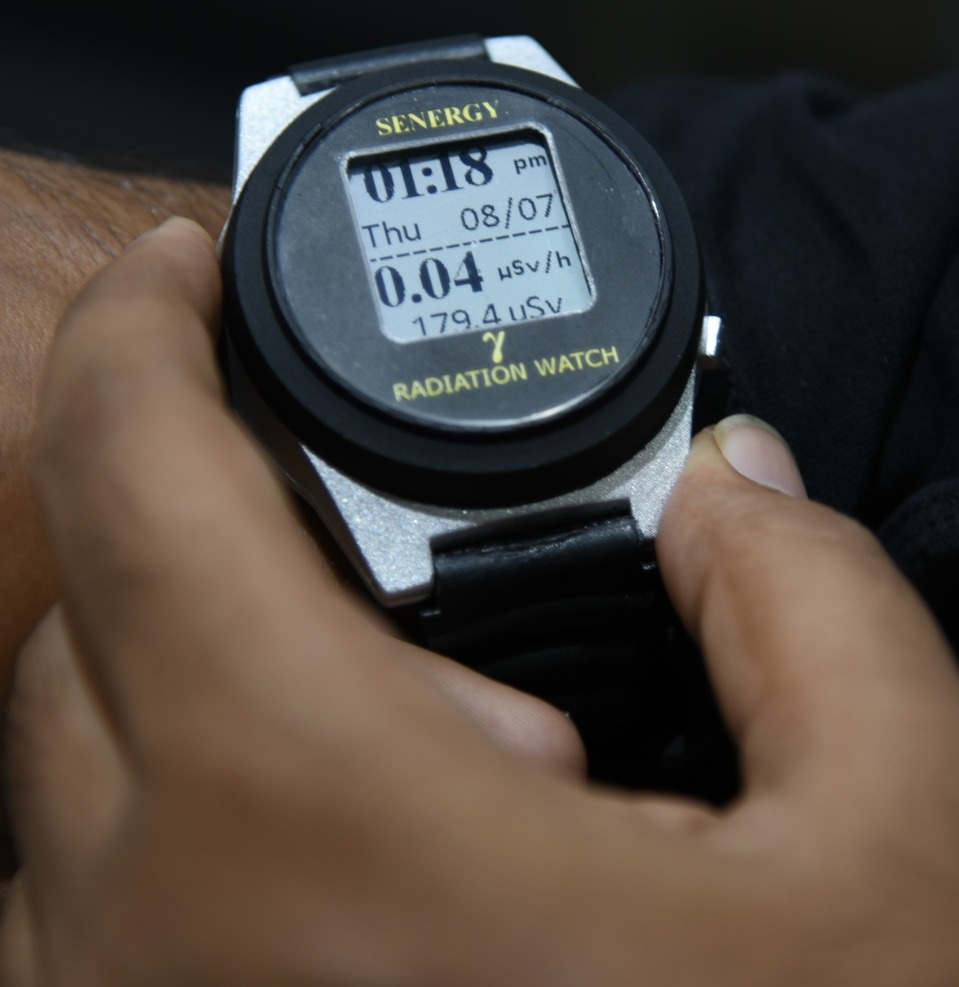

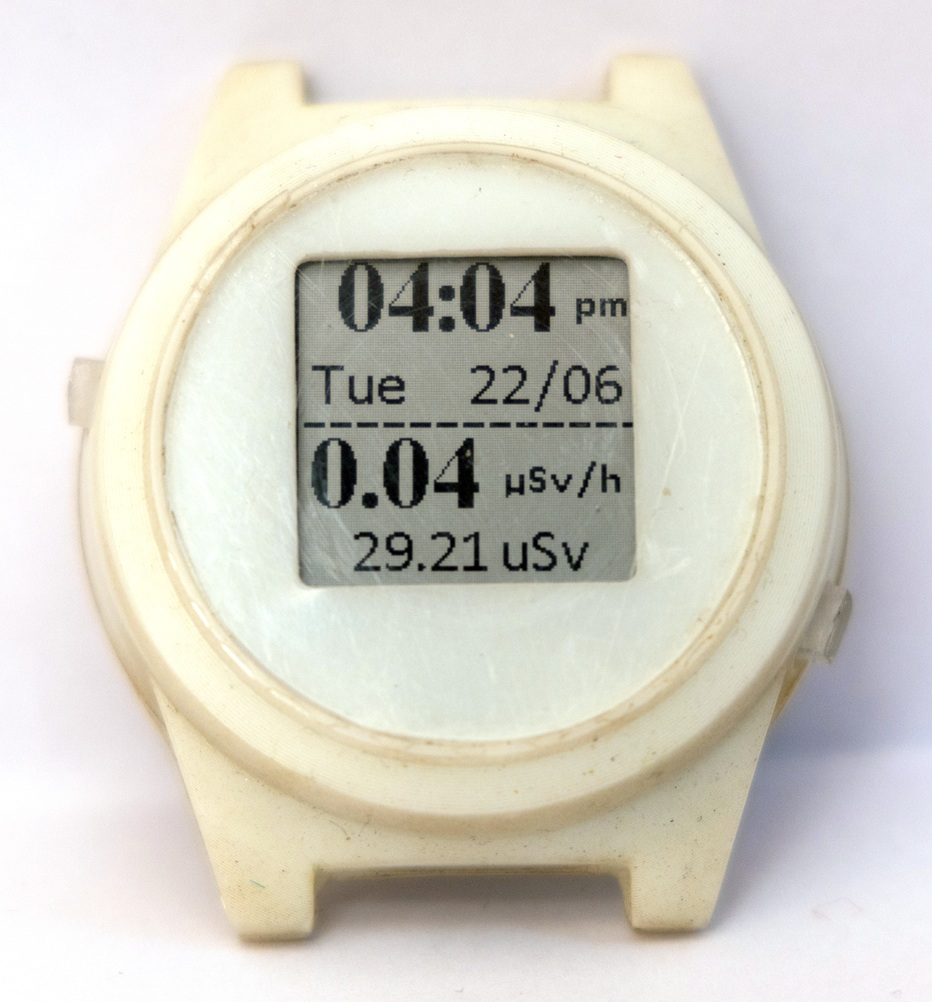

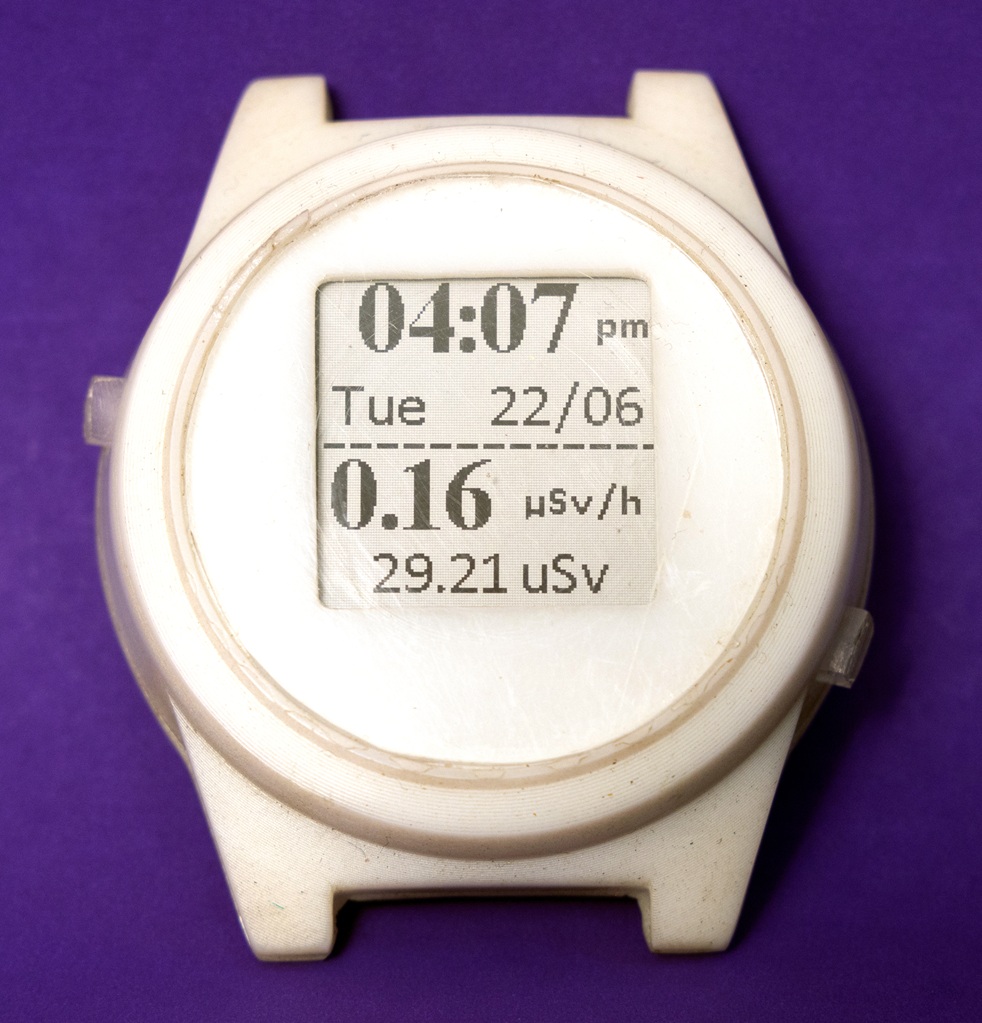

  • Small wearable Radiation watch - Radwatch

Technical Specification

Detection Range 0-10mR/Hr or 0-0.1 mGy/Hr.
Advanced model covers 0-10R/Hr with multiple GM tubes.
Detector Internal GM Tube (or External option).
Output EHT Voltage: 100-700V dc.
4 - 20mA or 1-5V.
Display update rate: 1 sec.
Display update rate 1 sec
Measurement time period user settable from 1 to 60s or Automatic based on dose rate.
Contact output for Alarm indication.
Contact inputs for alarm acknowledge and reset.
Communication Protocol Modbus-RTU or Modbus Over Ethernet protocol.
Compact Size 300 mm W X 200 mm L X 90 mm H.
Rugged Metallic Enclosure
Suitable for industrial environment.
Ingress Protection IP54. (IP66 option available).
Power supply 220V 50Hz AC
Four hours Battery backup option

Monitor gamma dose rate of the area or lab with Senergy AGM
