Environmental Radiation Monitor

Remote area Radiation Monitoring

Overview

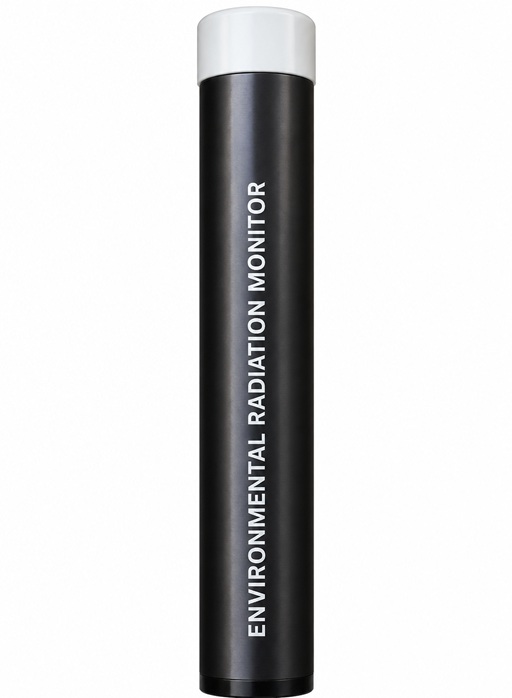

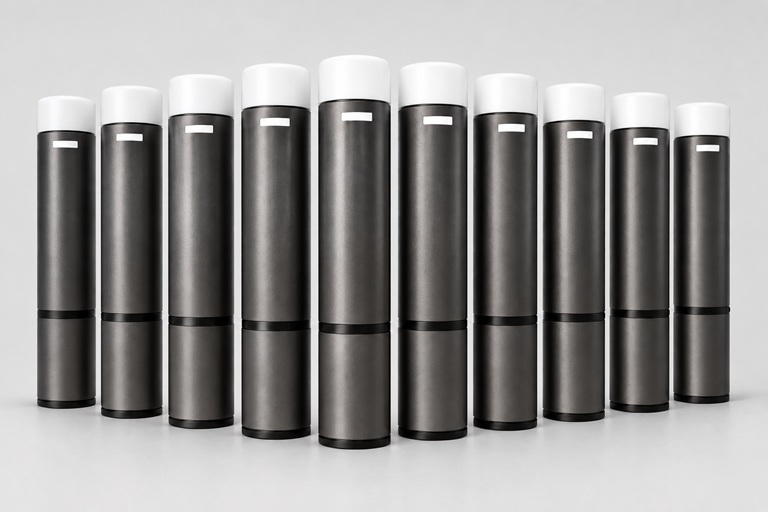

Senergy’s Environmental Radiation Monitor (ERM) is a Compact & Robust, gamma radiation monitoring unit for remote areas

  • Wide Sensing Range
  • High availability: Redundant detectors, electronics
  • Extra long battery life
  • Wireless data transfer
  • Real-time Alarm notification
  • Easy SCADA Integration
Contact Now

How it Works

Monitors
Monitors

Monitors Gamma radiation.

1
Alerts
Alerts

Alert on set radiation level.

2
generates logs
generates logs

Logs radiation dose rate and self health

3
Transfer to server
Transfer to server

Periodic data transmission to central server

4

Features

  • Environmental radiation monitoring around nuclear facilities or any remote areas
  • Provides early warning of any accidental release of dangerous activity in the surroundings.
  • Monitoring in the plant surrounding is generally in open, un-manned areas- having no access to wired communication or power supply.
  • Senergy ERM, is suitable for such challenging situation, due to its long life internal battery operation and wireless data communication

  • Redundant detectors
  • Redundant HV electronics
  • Battery operated
  • The radiation level is logged in its internal memory for over two years.
  • periodic log of self health parameters - battery voltage, temperature
  • Wide operating range
  • Continuously ON in normal background condition.
  • LONG battery life to last for TWO years
  • GSM or zigbee communication suitable for remote areas
  • GSM network using GPRS or SMS to remote data collector.
  • Zigbee- data is sent over multi-hop network to the central server
  • All communication is secured with encryption

Technical Specification

Wide Detection Range 10nGy/Hr to 10mGy/Hr
Gamma rays energy range 50keV to 3MeV
Accuracy Radiation detection Accuracy: ±10%
Scan time 2 to 480 minutes - settable
High Availability Redundant detectors, redundant HV, electronics
Temperature Temperature sensor: -20 to 75 deg C
Communication GPRS OR Zigbee wireless
Power supply Internal Battery
Battery life Two years, extendable to 5 years

Need early warning of any accidental release of dangerous activity in the surroundings

Senergy ERM is suitable for you
